36” Fan Motor and Blade Set - Free Delivery

The Performaxx 36" Air Circulation Fan Motor and Blade Set is a robust and reliable solution designed specifically for poultry farm ventilation needs. This complete set includes a 0.5 HP single-phase motor (Model D61M), three 36-inch plastic fan blades, and a blade hub, giving you everything required for a full fan assembly. The motor delivers 370 watts of power at 940 RPM, operating on a voltage range of 180 to 230V at 50 Hz, making it well-suited for Indian electrical supply conditions. With a current draw of 3.5 amps and a run capacitor rated at 15.0 MFD, 440VAC, the motor ensures smooth and consistent operation. Built to Class F insulation standards and rated for ambient temperatures up to 40°C, this motor is engineered to withstand the demanding conditions of poultry houses. The thermally protected design adds an extra layer of safety during continuous use. The three large red plastic blades move over 12,000 CFM of air, ensuring excellent ventilation and air circulation across large spaces. Frame size B48 and clockwise rotation complete the technical profile of this dependable fan motor set.

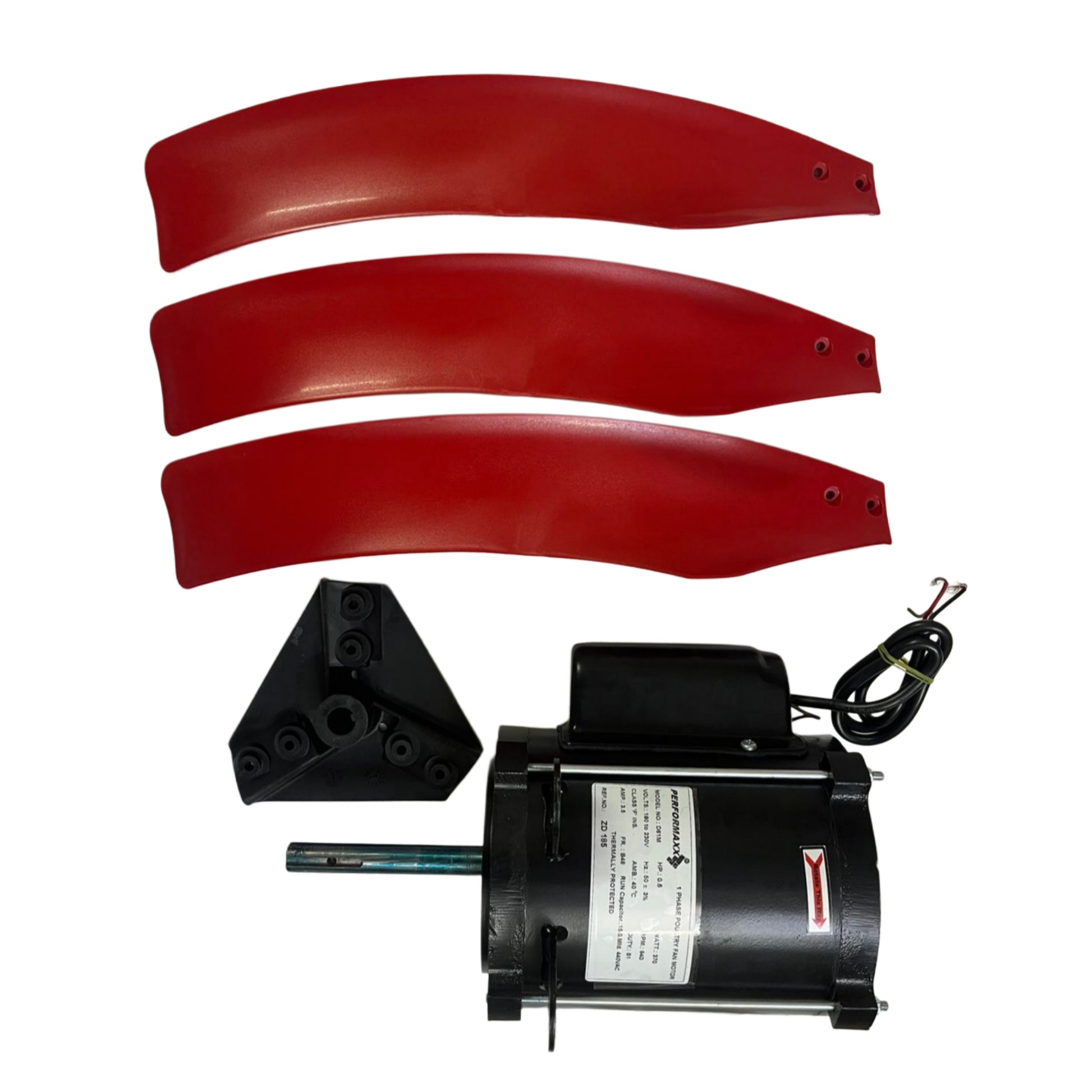

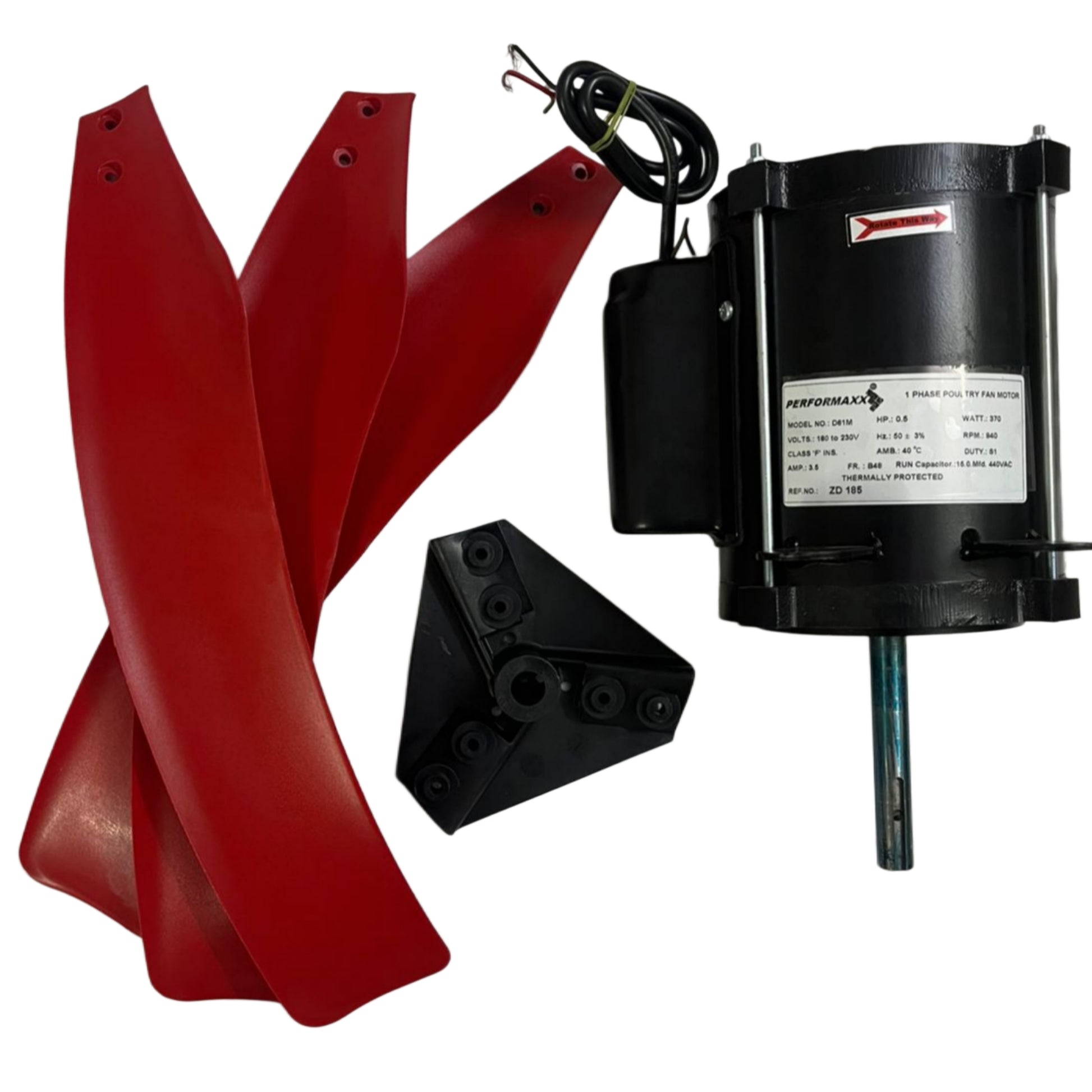

COMPLETE FAN SET: Includes a 0.5 HP single-phase poultry fan motor, 3 plastic fan blades of 36 inches, and a blade hub for a ready-to-install solution.

POWERFUL PERFORMANCE: Delivers 370 watts of power at 940 RPM with an airflow capacity of 12,000+ CFM, ensuring efficient air circulation across large poultry or agricultural spaces.

WIDE VOLTAGE COMPATIBILITY: Operates within a voltage band of 170–250V (single-phase, 230V nominal) at 50 Hz, making it suitable for standard Indian electrical supply conditions.

THERMALLY PROTECTED MOTOR: Features Class F insulation, S1 continuous duty rating, a 15 MFD 440VAC run capacitor, and built-in thermal protection for safe, long-lasting operation.

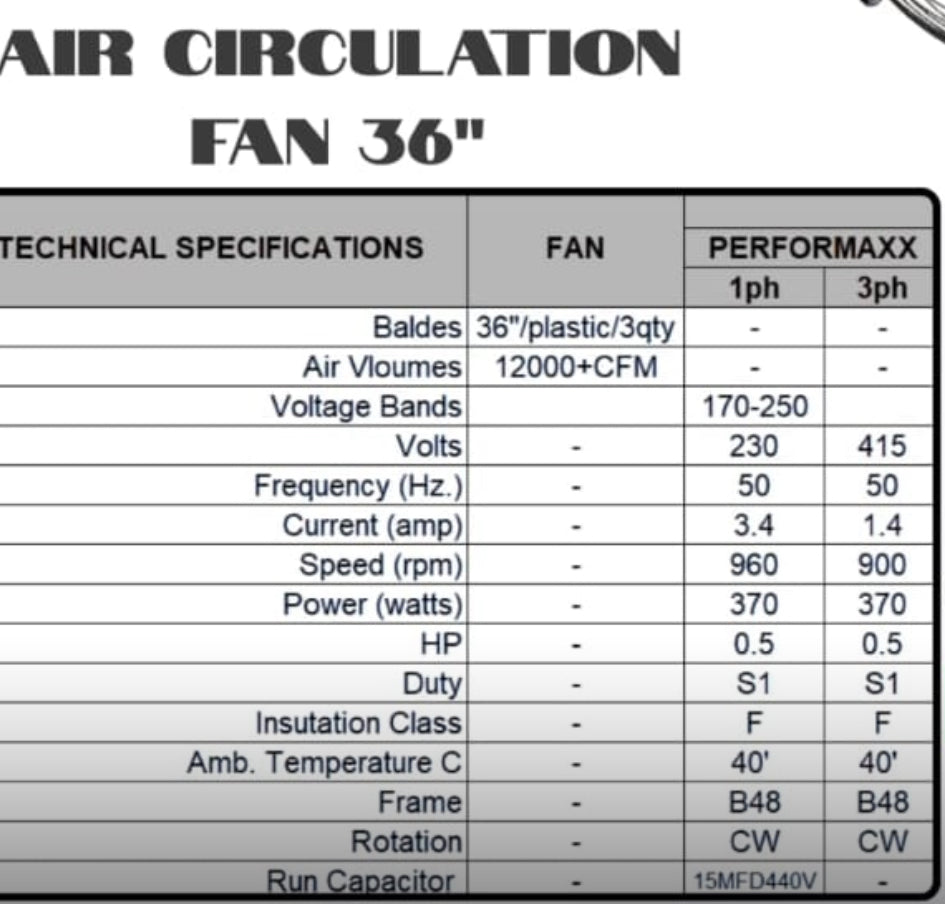

KEY SPECIFICATIONS: Frame B48, ambient temperature up to 40°C, current draw of 3.4 amps, clockwise rotation, and model number D61M (Ref. No. ZD185).
